Description
Product Overview

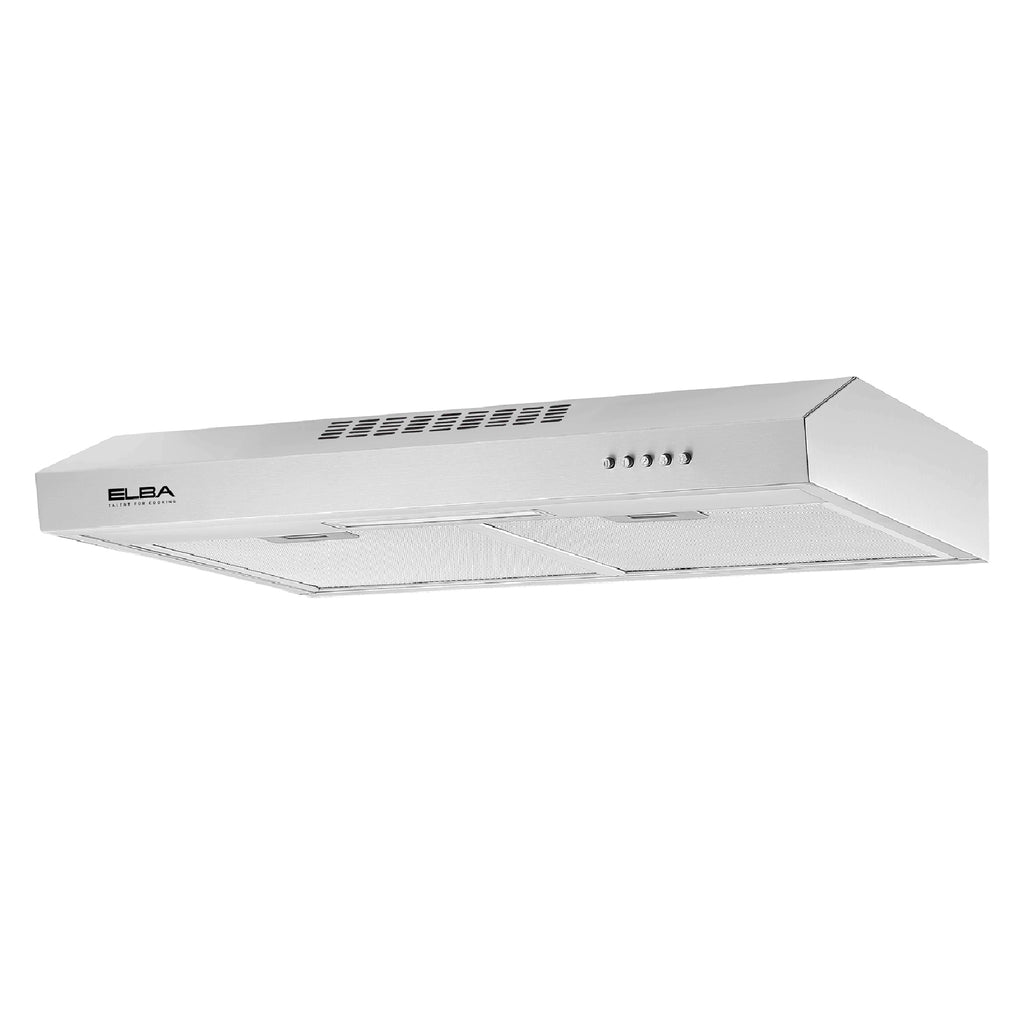

- 60cm Slim Type Traditional / Under-Cabinet Hood
- Single Motor Configuration
- Stainless Steel Finish
- Installation: Ducting or Recycling Method
For Ducted Installation:
- House must have 4 inch diameter duct pipe ready for the unit to be tapped into.
- Using a smaller diameter pipe will reduce performance and void the warranty.
For Recycling Installation:
- Use the provided duct cover adaptor and vent out through the louvers on the frontal portion of the hood.
- Ensure that the lever is set to recycling mode found on the underside of the motor
Warranty Term
- Parts: 1 year
- Labor:1 year
General Specifications
- Motor: 1x110W max/motor
- Suction Power: 300CMH max
- Filters: 5 Layer Aluminum Filters (traps oil and grease)
- Charcoal Filter: Yes (reduces kitchen odor and smoke)
- Controls: Push Button Controls
- Lights: 1x1.5W Extra Bright LED Lights (6500k)
- Color: Stainless Steel Finish
- Net Weight (kg): 4.8kg
- Gross Weight (packed): 5.6kg
-
Net Dimensions (WxHxD) - mm & inches: 600mmX102mmX480mm
What's in the box
- User Manual
