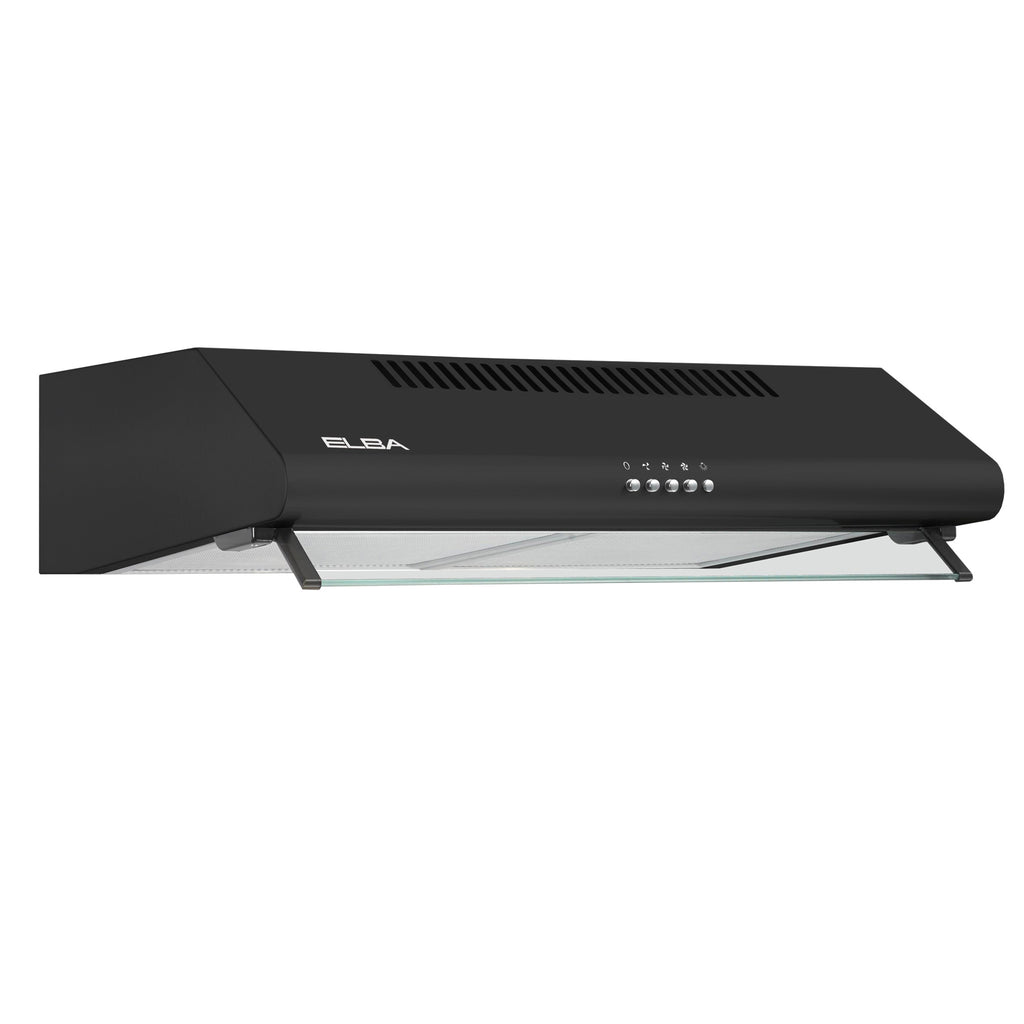

506A-50BK ELBA RANGEHOOD


Price:
₱5,300

Buy it now

Description

Product Description

  • 50cm Traditional Hood
  • 1 Motor, 250 m3h
  • Push Button Control
  • Black Painted
  • Recycling or Ducting


Product Specifications

  • Motor / Motor Power / Motor Outlet Diameter
  • 1 motor / 115W max / 120mm diameter
  • Suction Power / Static Pressure / Sound Level
  • 250 CMH / 240 Pa / 66dB Max
  • Controls: 3 speed push button controls
  • Lighting: 2 x 2W LED Bulbs
  • Grease Filters: 5 Layer Aluminum Filters
  • Body: Gloss black body with glass visor
  • Accessories: Charcoal Filters, duct adaptor, duct cover (for recycling installaiton)


General Specifications

  • 50cm under cabinet/ / slim type rangehood
  • Gloss black body with glass visor
  • Easty to clean aluminum filters
  • Single motor configuration

Color: Gloss black body
Net Weight (kg): 4.50
Gross Weight (packed) in Kg. 6.00
Net Dimensions (WxHxD): 500x150x500mm
Gross Dimensions (WxHxD): 545x550x195mm


OTHERS INSTALLATION REQUIREMENTS

  • Compatible for both Ducted or Recycling function / installation
  • 120mm minimum diameter from air outlet to exhaust vent
  • Use of pipe reducer will void warranty of product

POWER REQUIREMENTS

  • Voltage Frequency Wattage Amperage Plug Type
  • 230V 60Hz 119W 0.5A Type A (2 flat)

What's in the box

  • User manual
  • screws for installation
