Description
Warranty Term
- Parts: 1 Year
- Labor: 1 Year
General Specifications
Power input: AC 100 – 240 V ~ 50 / 60 Hz
Output power: 280 W RMS (IEC60268)
Audio Specifications
Transducer:
- 2 × φ165mm(6.5inch)-Effective woofers
-
2 × φ25mm(1inch) PEN dome tweeters
Frequency response: 40 Hz – 20 kHz(-6dB)
Signal-to-noise ratio: > 80dB
Control and Connection Specifications
Input sensitivity:
- Aux-In: 250 mV RMS (3.5 mm connector)
- Mic-In: 20 mV RMS
- Guitar-In: 100 mV RMS
- Bluetooth/USB input: -12 dBFS
-
Optical-In: -12 dBFS
Bluetooth® version: 6.0
Bluetooth® profile: A2DP V1.4, AVRCP V1.6
Bluetooth® transmitter frequency range: 2.4 GHz - 2.4835 GHz
Bluetooth® transmitter power: ≤ 15 dBm (EIRP)
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
USB format: FAT16, FAT32
Supported formats: .MP3, .WAV, .FLAC (not available for EMEA region)
USB-C charge out: 5 V / 1 A
Cable type: AC power cable (type varies by regions)
AC Power cable length: 2.0m/ 6.6ft
Dimension Specifications
Product dimensions(W x H x D): 334 x 662.5 x 375mm / 13.15” x 26.08” x 14.76”
Net weight : 17.1kg / 37.7lbs
Packaging dimensions (W x H x D): 392 x 718 x 441mm / 15.43” x 28.27” x 17.36”
Gross weight : 19.75kg / 43.54lbs
Battery Specifications
Battery type: JBL Battery 400, Li-ion 68 Wh (equivalent to 7.2 V / 9444 mAh)
Battery charge time: 3 hours (speaker off mode)
Music play time: up to 18 hours (varies by volume level and audio content)
Color: White
Net Weight (kg): 17.1kg / 37.7lbs
Gross weight : 19.75kg / 43.54lbs
Net Dimensions (WxHxD) - mm & inches: (W x H x D): 334 x 662.5 x 375mm / 13.15” x 26.08” x 14.76”"
Gross Dimensions (WxHxD) - mm & inches: Packaging dimensions (W x H x D): 392 x
718 x 441mm / 15.43” x 28.27” x 17.36”"
What's in the box:

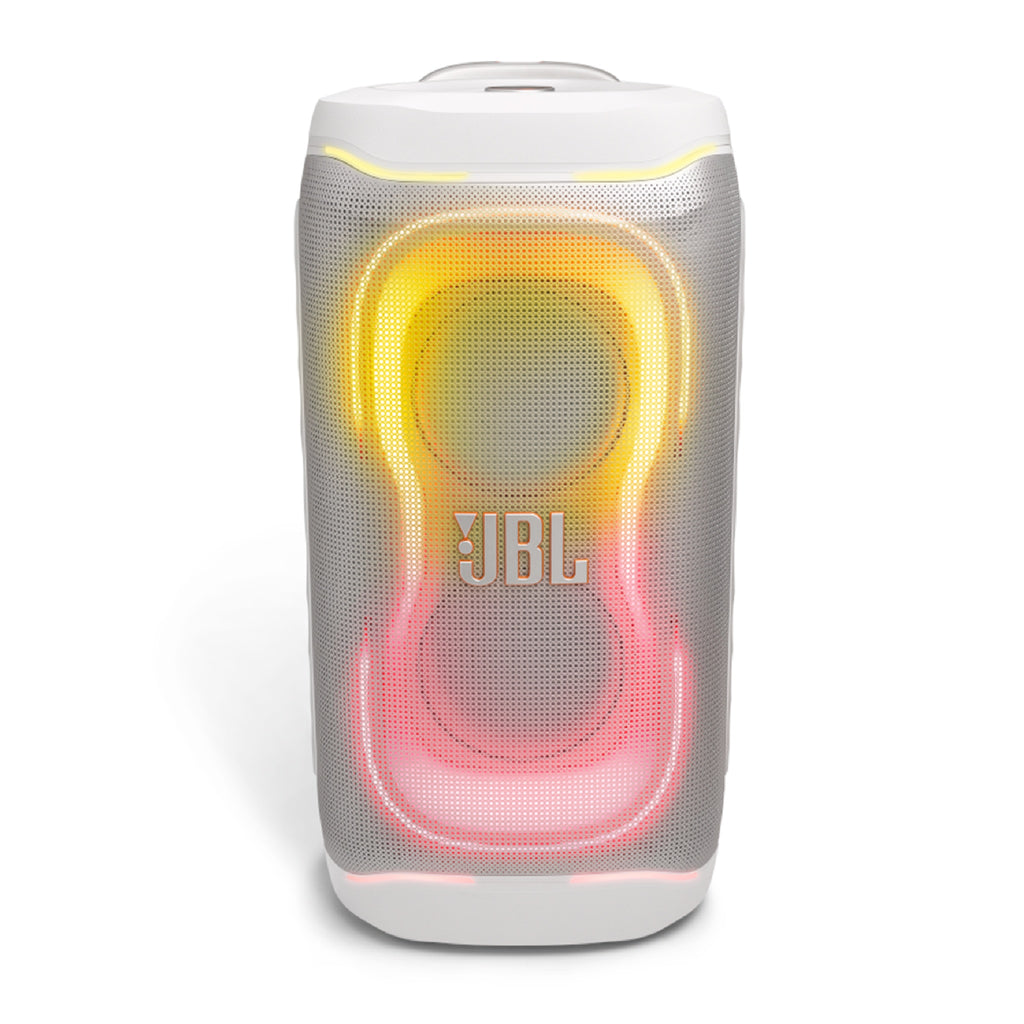

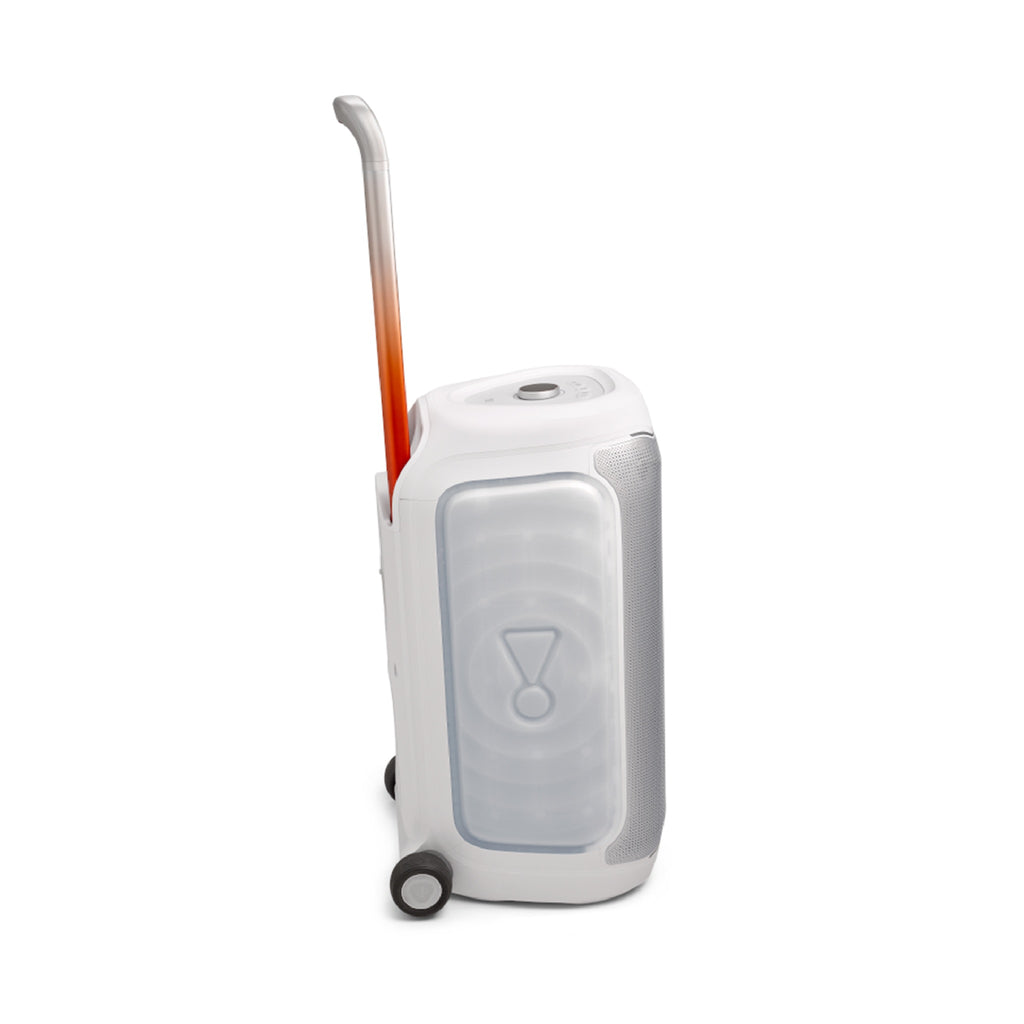

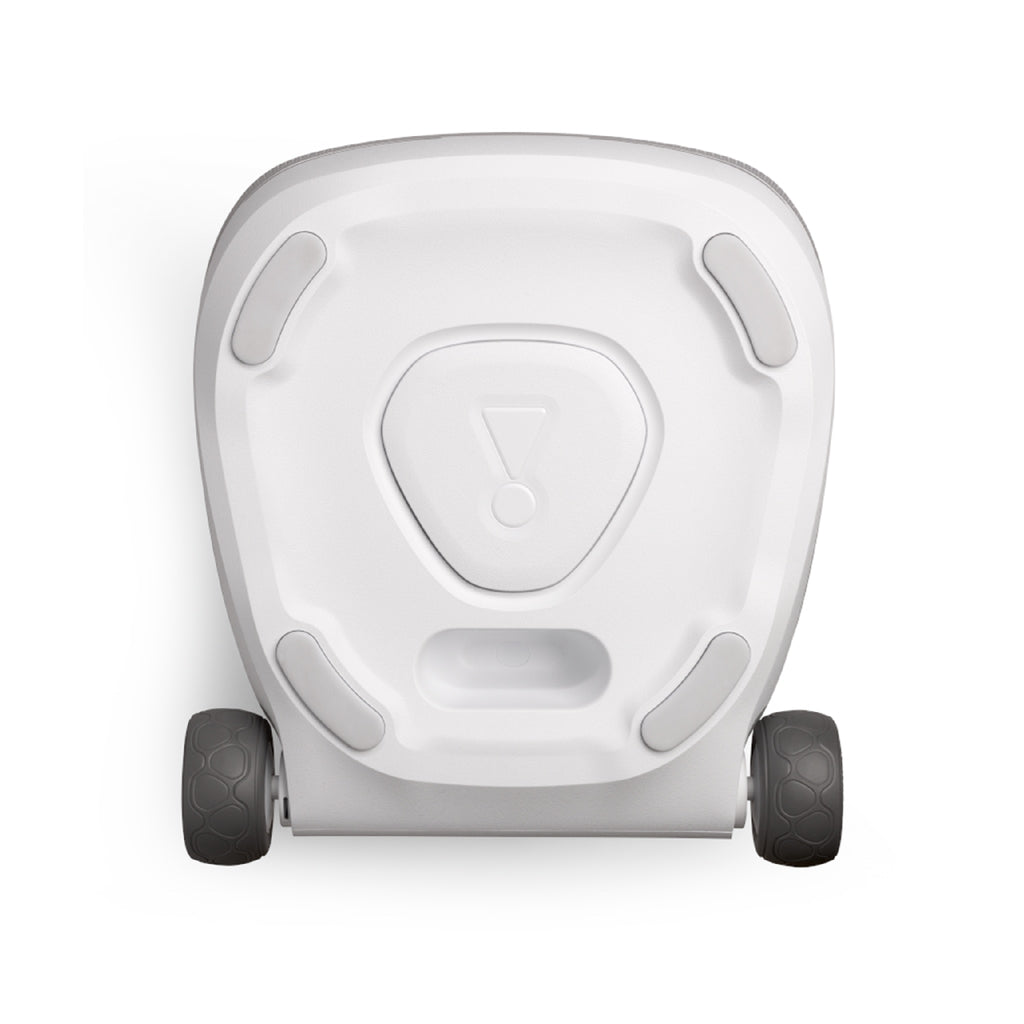

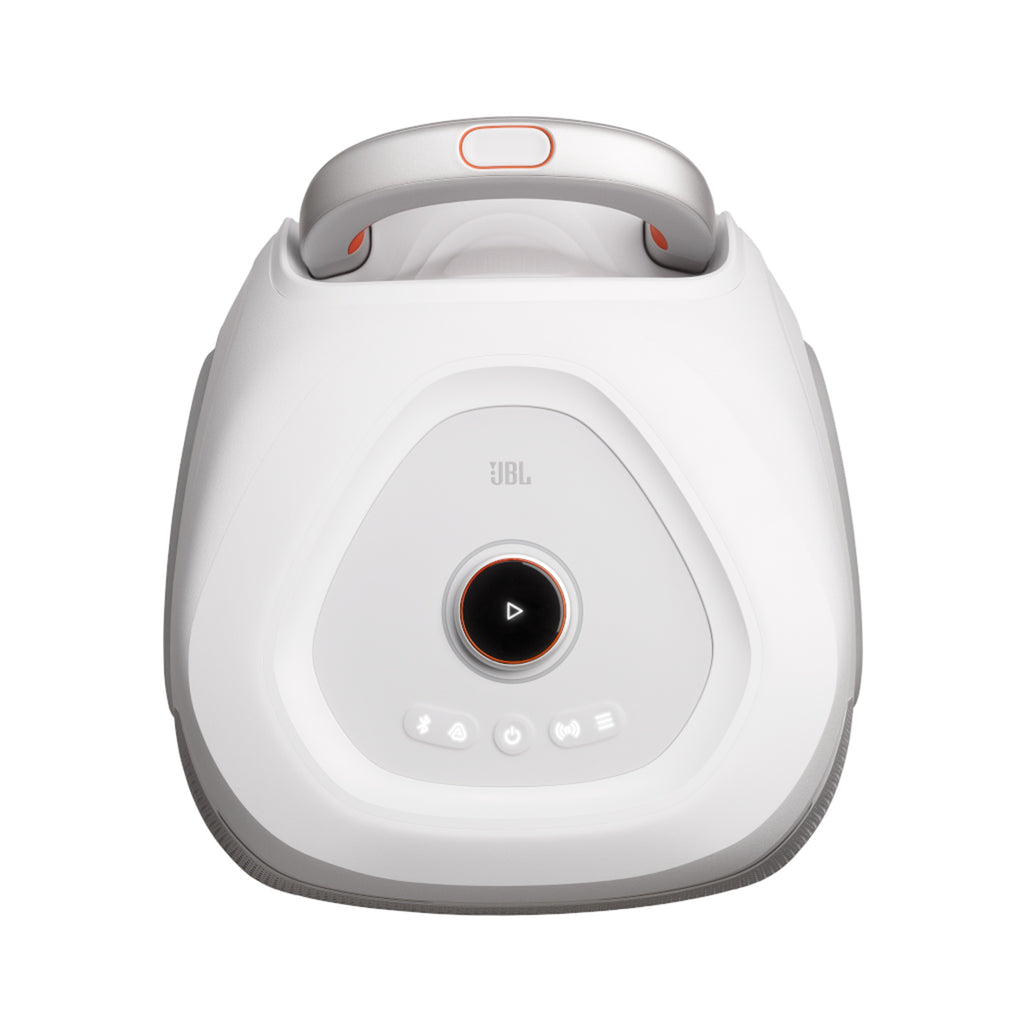

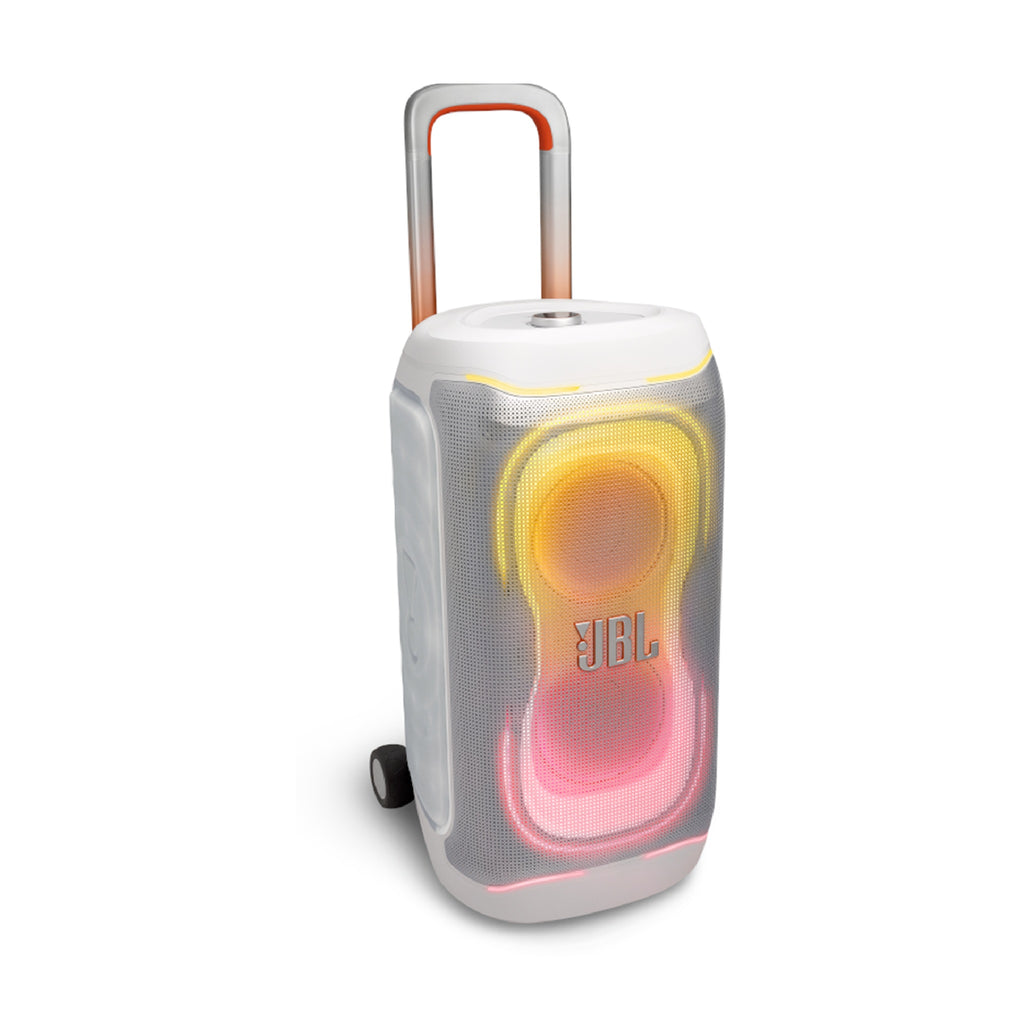

- 1 x JBL PartyBox 330
- 1 x Quick-start guide
- 1 x Safety Instruction and Warranty Card
- AC power cord - quantity and plug type vary by regions
